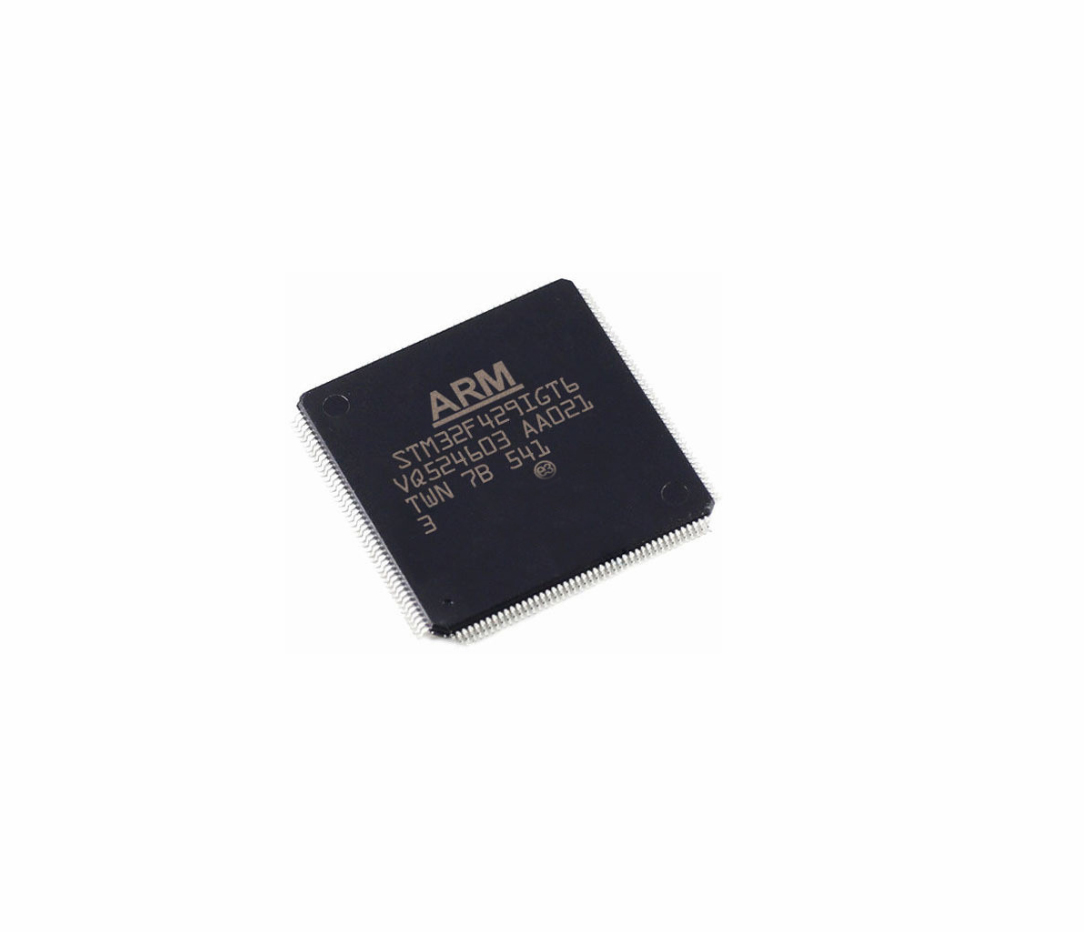

【MCU Microcontroller】STM32F429IGT6 ARM Microcontroller - MCU

Time:2022-11-28   Views:

Shenzhen Meiyuxin Technology Co., Ltd. [MCU microcontroller] STM32F429IGT6 ARM microcontroller - MCU DSP FPU ARM CortexM4 1Mb Flash 180MHz! ! !


Product Description:

STM32F429IGT6  devices are based on the high-performance Arm®Cortex®-M4 32-bit RISC core operating at a frequency of up to 180 MHz. The Cortex-M4core features a Floating point unit (FPU) single precision which supports all Arm® singleprecision data-processing instructions and data types. It also implements a full set of DSPinstructions and a memory protection unit (MPU) which enhances application security.


STM32F429IGT6 devices incorporate high-speed embeddedmemories (Flash memory up to 2 Mbyte, up to 256 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix. All devices offer three 12-bit ADCs, two DACs, a low power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers.


They also feature standard and advanced communication interfaces.

• Up to three I2Cs

• Six SPIs, two I2Ss full duplex. To achieve audio class accuracy, the I2S peripherals can be clocked via a dedicated internal audio PLL or via an external clock to allow synchronization.

• Four USARTs plus four UARTs

• An USB OTG full-speed and a USB OTG high-speed with full-speed capability (with the ULPI),

• Two CANs

• One SAI serial audio interface

• An SDIO/MMC interface

• Ethernet and camera interface

• LCD-TFT display controller

• Chrom-ART Accelerator™.


These features make the STM32F429IGT6  microcontrollers suitable for a wide range of applications:

• Motor drive and application control

• Medical equipment

• Industrial applications: PLC, inverters, circuit breakers

• Printers, and scanners

• Alarm systems, video intercom, and HVAC

• Home audio appliances
