Time:2022-11-29 Views: 91

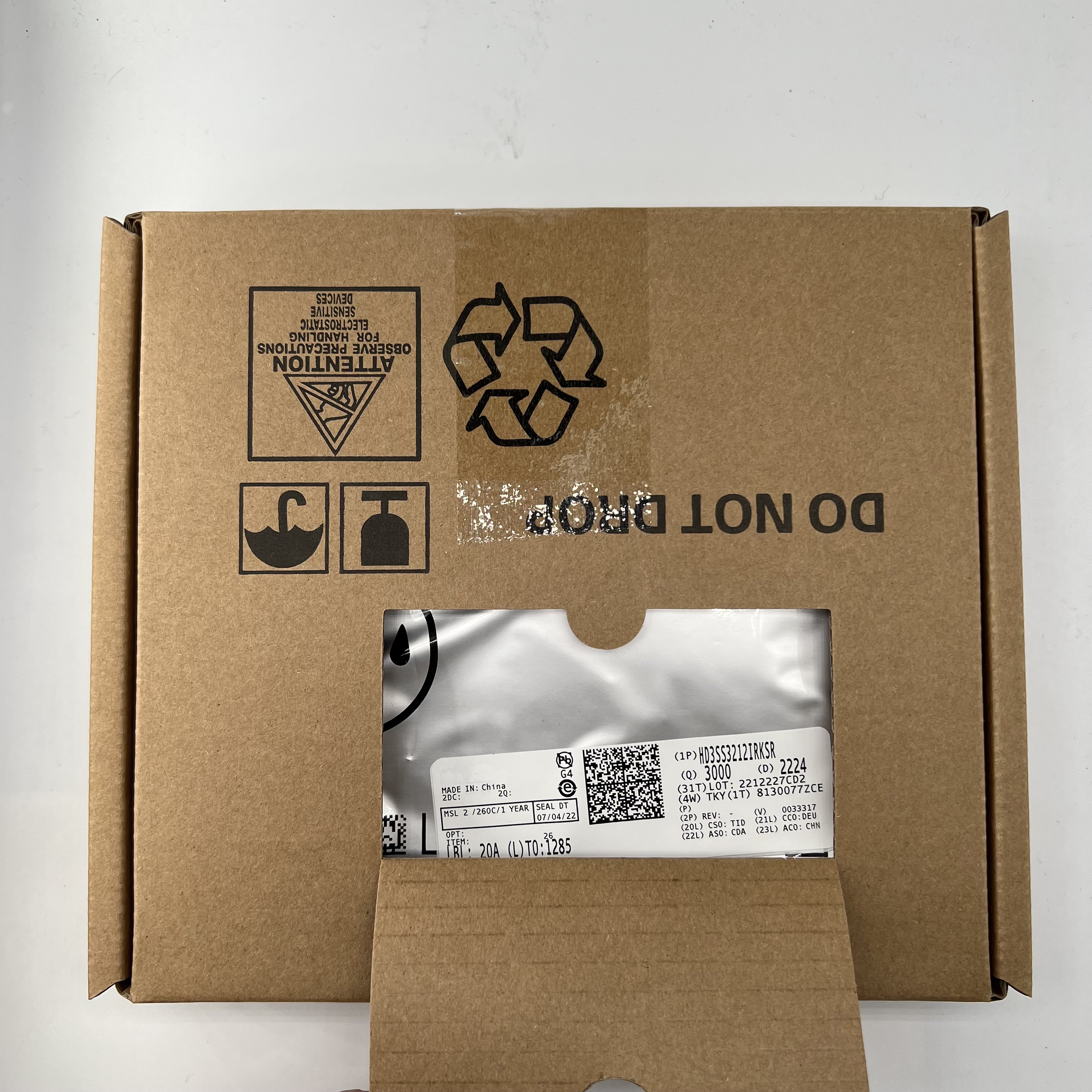

Shenzhen Meiyuxinjian Co., Ltd. [TI agent] HD3SS3212IRKSR USB 3.1 two-channel differential 2:1/1:2 10Gbps multiplexer/demultiplexer! ! !
Product Description:
The HD3SS3212 is a high-speed bidirectional passive switch available in multiplexed or demultiplexed configurations for USB Type-C™ applications supporting USB3.1 Gen 1 and Gen 2 data transfer rates. The device can switch between two differential channels (port B to port A, or port C to port A) via the control pin SEL.
The HD3SS3212 is a general-purpose analog differential passive switch that meets the needs of any high-speed interface application for differential signaling with a common-mode voltage range of 0-2V and differential amplitudes up to 1800mVpp. The device uses adaptive tracking to ensure that the channel remains constant over the entire common-mode voltage range.
The device's excellent dynamic characteristics enable high-speed transitions with minimal attenuation of the signal's eye diagram and minimal additive jitter. The device consumes < 2mW in active mode and < 20µW in shutdown mode (mode switchable via OEn pin).
Product Features:
Provides mux/demux solutions for the USB Type-C™ ecosystem supporting USB3.1 Gen 1 and Gen 2 data transfer rates
Compatible with MIPI DSI/CSI, FPDLinkIII, LVDS, and PCIE Gen II and III
Operates at up to 10Gbps
Wide -3dB Differential Bandwidth Over 8GHz
Excellent dynamic characteristics (at 5GHz)
Crosstalk = –32dB
Disconnected isolation = –19dB
Insertion Loss = –1.6dB
Return Loss = –12dB
Bidirectional "mux/demux" differential switch
Supports 0 to 2V Common Mode Voltage
Single supply voltage VCC: 3.3V±10%
0°C to 70°C Commercial Temperature Range (HD3SS3212RKS)
-40°C to 85°C Industrial Temperature Range (HD3SS3212IRKS)
Application:
USB Type-C™ Ecosystem
Desktop and Notebook Personal Computers (PCs)
Server/storage network
PCI Express backplane
shared I/O port
FPDLinkII and FPDLinkIII switches
