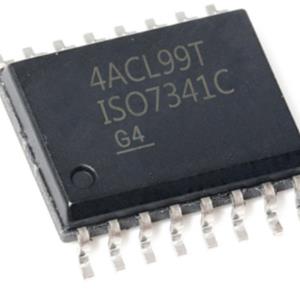

The ISO7341FCDWR device provides galvanic isolation up to 3000 VRMS for up to 1 minute per UL 1577 and 4242 VPK isolation per VDE V 0884-10. The devices feature four isolation channels consisting of logic input and output buffers separated by silicon dioxide (SiO2) insulating barriers.

ISO7341FCDWR devices have four forward channels, ISO7341x devices have three forward channels and one reverse channel, and ISO7341FCDWR devices have two forward channels and two reverse channels. In the event of loss of input power or signal, the default output is low (devices with suffix F) or high (devices without suffix F). See the Device Functional Modes section for more details.

Used in conjunction with isolated power supplies, these devices help prevent noise currents on data buses or other circuits from entering the local ground and interfering with or damaging sensitive circuits. The ISO7341FCDWR device has an integrated noise filter for use in harsh industrial environments where short noise pulses may appear on the device input pins. The ISO734x devices have TTL input thresholds and operate from 3V to 5.5V. With innovative chip design and layout techniques, the electromagnetic compatibility of the ISO7341FCDWR family of devices has been significantly enhanced, enabling system-level ESD, EFT and surge protection and compliance with emissions standards.

Product Specifications:

Manufacturer: ISO7341FCDWR

Product Category: Digital Isolators

RoHS: Details

Series: ISO7341FC

Installation style: SMD/SMT

Package/Case: SOIC-16

Number of channels: 4 Channel

Polarity: Unidirectional

Data rate: 25 Mb/s

Insulation Voltage: 3000 Vrms

Isolation Type: Galvanic Isolation

Supply Voltage - Maximum: 5.5 V

Supply Voltage - Min: 3 V

Operating supply current: 5 mA, 7.8 mA

Propagation Delay Time: 31 ns

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Package: Reel

Forward channel: 3 Channel

Maximum fall time: 1.7 ns

Maximum rise time: 2.1 ns

Moisture Sensitivity: Yes

Pd-Power Dissipation: 102 mW

Product Type: Digital Isolators

Pulse width distortion: 4 ns

Back channel: 1 Channel

Shutdown: No Shutdown

Subcategory: Interface ICs

Unit weight: 666 mg
