Product Description:

The LMR36006FSC3RNXRQ regulator is an easy-to-use synchronous step-down DC/DC converter. The device has integrated high-side and low-side power MOSFETs and is capable of delivering up to 0.6A of output current over a wide input voltage range of 4.2V to 60V. Tolerant up to 66V.

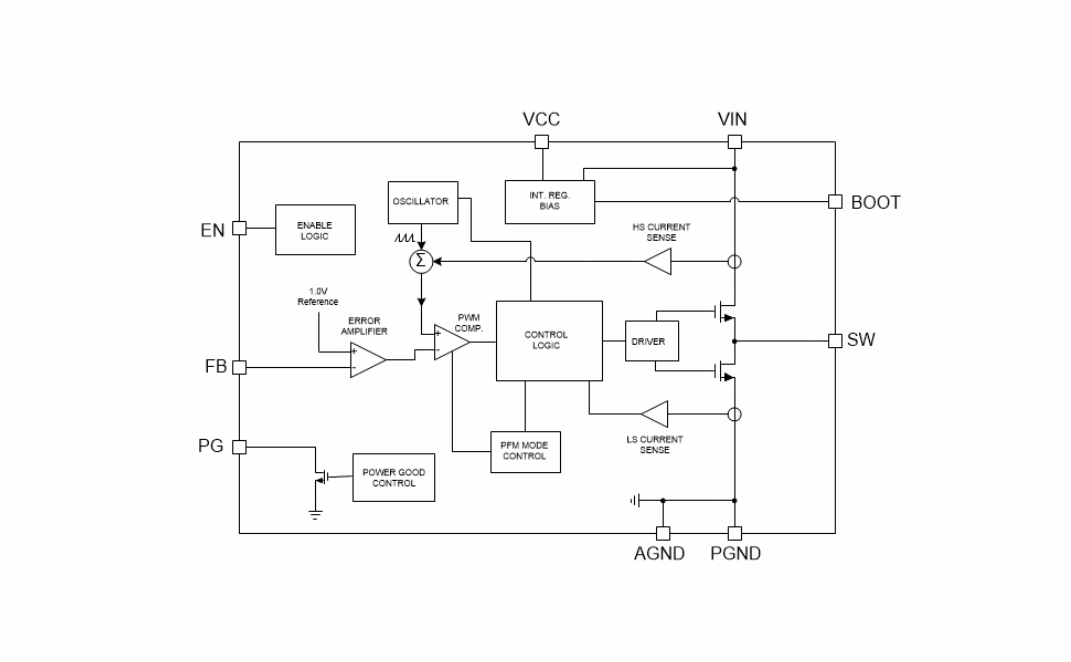

The LMR36006FSC3RNXRQ uses a peak current mode control scheme to provide optimum efficiency and output voltage accuracy. The LMR36006-Q1 utilizes advanced high-speed circuitry to regulate from 20V input to 5V output at a fixed frequency of 2.1MHz. Precision enables provide flexibility by allowing direct connection to wide input voltages or precise control of device startup and shutdown. A power good status flag with built-in filtering and delay provides a true indication of system status without the need for external monitors.

The LMR36006FSC3RNXRQ is housed in a HotRod™ package for low EMI, higher efficiency and an ultra-small package-to-die ratio. The device requires few external components and has a pinout that simplifies PCB layout. The small solution size and variety of features of the LMR36006-Q1 are designed to simplify implementation in a wide variety of end equipment.

Product parameters:

• AEC-Q100 Qualified for Automotive Applications:

– Temperature class 1: –40°C to +125°C, TA

• Available in functional safety

– Documentation to aid in functional safety system design

• Designed for automotive applications

– Junction temperature range of –40°C to +150°C

– Protection Features: Thermal Shutdown, Input Undervoltage Lockout, Cycle-by-Cycle Current Limit, and Hiccup Short-Circuit Protection.

– 0.2V Dropout (Typical) at 0.6A Load

– ±1.5% Reference Voltage Tolerance

– 3.3-V fixed output voltage option available

• Suitable for scalable power supplies

– Pin Compatible with:

• LMR36015-Q1 (60V, 1.5A)

• LMR33620/30-Q1 (36V, 2A or 3A)

– 400kHz, 2.1MHz frequency options

• Reduce solution size and cost through integrated technology

– Small 2mm × 3mm VQFN package (with wettable flanks)

– few external components

• Low power dissipation over the entire load range

– 94% Efficiency at 400kHz (12 VIN, 5 VOUT, 0.6 A)

– Improved light load efficiency in PFM mode

– Low 26-µA Operating Quiescent Current

• Optimized for ultra-low EMI requirements

– CISPR25 Class 5 Compliant

– HotRod™ package minimizes switch node ringing

– Parallel input paths minimize parasitic inductance

– Spread spectrum reduces peak emissions

Application:

• ADAS camera module

• Body Control Module
