Product Description:

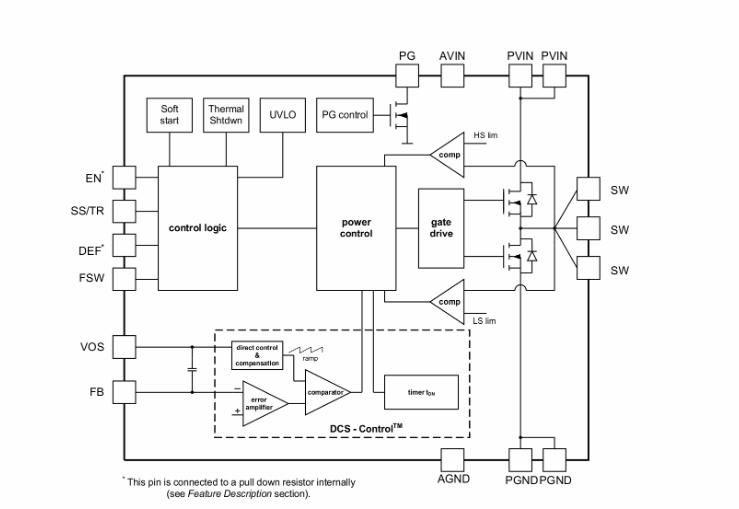

The TPS62152AQRGTRQ1 device is an easy-to-use synchronous step-down DC/DC converter optimized for applications. The high switching frequency, typically 2.5MHz, allows the use of small inductors and provides fast transient response and high output voltage accuracy through the use of DCS-Control™ topology.

With a wide operating input voltage range of 3 to 17 V, the TPS62152AQRGTRQ1 is ideal for systems powered by mid-bus power rails. Its output voltage ranges from 0.9V to 6V and supports up to 1A of continuous output current (using 100% duty cycle mode).

The TPS62152AQRGTRQ1 output voltage start-up slope is controlled by the soft-start pin, enabling operation as a standalone power supply or in tracking configuration. Power sequencing is also possible through configuration enable and open-drain power good pins.

TPS62152AQRGTRQ1 In power save mode, the device shows a quiescent current of about 17 µA from VIN. If the load is light, it automatically and seamlessly enters power saving mode and maintains high efficiency across the entire load range. In shutdown mode, the device is turned off and consumes less than 2µA of shutdown current. The device is packaged in a 3mm × 3mm (RGT) 16-pin Very Low Profile Quad Flat No-Lead (VQFN).

Product parameters:

• DCS-Control™ topology

• Compliant for automotive applications

• Offers the following AEC-Q100 qualified characteristics:

– Device temperature grade: -40°C to 125°C operating junction temperature range

– Device HBM ESD Classification Level 2

– Device CDM ESD classification level C4B

• Input Voltage Range: 3V to 17V

• Adjustable Output Voltage from 0.9V to 6V

• Pin Selectable Output Voltage (Nominal, +5%)

• Programmable Soft-Start and Tracking

• Seamless switching between energy-saving modes

• 17-µA Quiescent Current (Typical)

• Selectable operating frequency

• Power Good Status Output

• 100% Duty Cycle Mode

• Short circuit protection

• Overheating protection

• Pin-for-pin compatible with TPS62130A-Q1

• Packaged in 3mm × 3mm VQFN-16

• Create custom designs with WEBENCH® Power Designer using the TPS62150AQ1

TPS62152AQRGTRQ1 Application：

• Automotive point-of-load (POL) power supplies

• Infotainment, CAN, USB power

• Embedded Systems

• LDO replacement products
