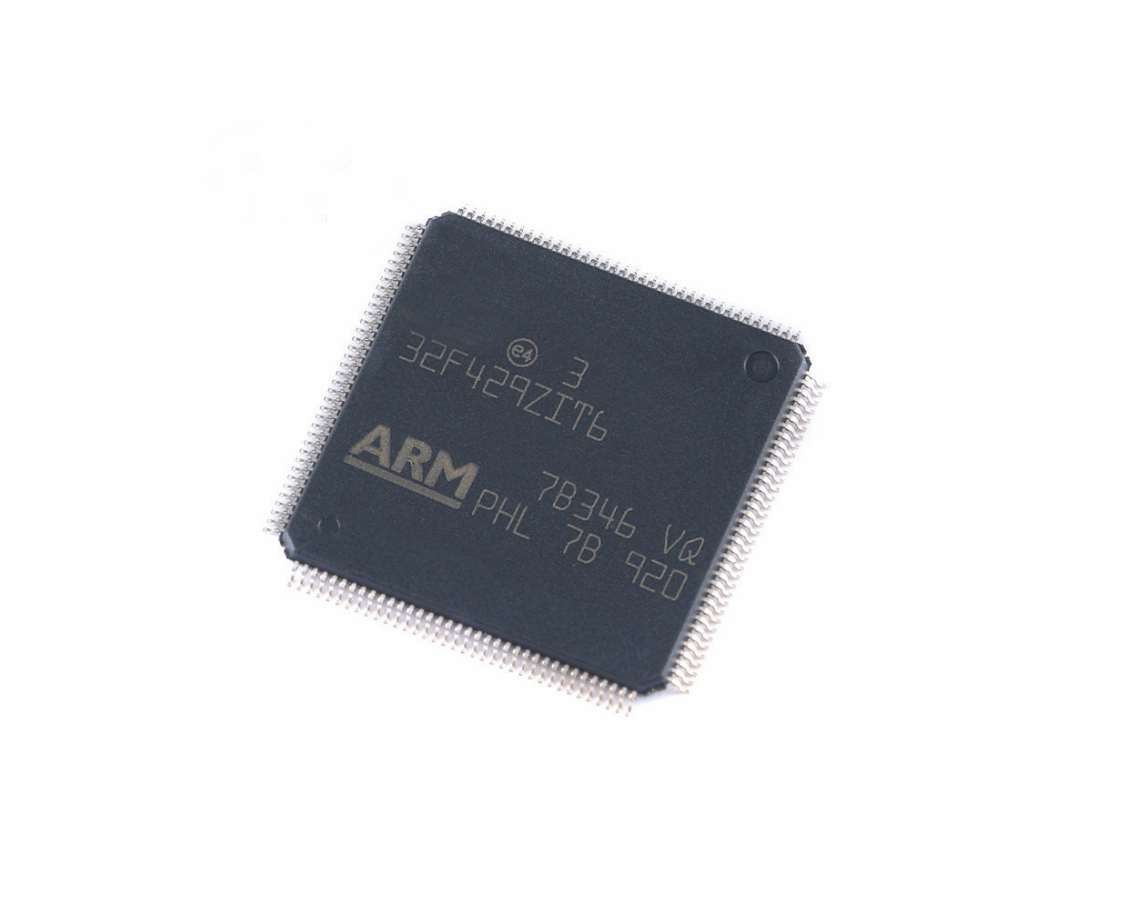

Shenzhen Meiyuxin Technology Co., Ltd. [MCU agent] STM32F429ZIT6 ARM microcontroller MCU DSP FPU ARM CortexM4 2Mb Flash 180MHz!!!

Product description:

STM32F429ZIT6 equipment is based on high-performance Arm ® Cortex ®- M4 32-bit RISC core, operating frequency up to 180 MHz. Cortex-M4 core adopts floating point unit (FPU) single precision, supporting all Arms ® Single precision data processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) to enhance application security.

STM32F429ZIT6 device includes high-speed embedded memory (flash memory capacity up to 2M bytes, SRAM capacity up to 256 KB), backup SRAM, and connection to two APB buses, two AHB buses, and 32-bit multi AHB bus matrix.

STM32F429ZIT6 All devices are provided with three 12 bit ADC, two DAC, one low-power RTC, and twelve general-purpose 16 bit timers, including two PWM timers for motor control and two general-purpose 32-bit timers.

STM32F429ZIT6 They also have standard and advanced communication interfaces.

• Up to three I2Cs

• Six SPIs, two I2S full duplex. In order to achieve audio level accuracy, I2S peripherals can synchronize timing through dedicated internal audio PLL or external clock.

• Four USARTs plus four UART

• USB OTG full speed and USB OTG high-speed with full speed function (with ULPI),

• Two CAN

• One SAI serial audio interface

• SDIO/MMC interface

• Ethernet and camera interfaces

• LCD-FT display controller

• Chrome ART accelerator ™.

Advanced peripherals include SDIO, flexible memory control (FMC) interfaces, and camera interfaces for CMOS sensors. Refer to Table 2: Functions and peripheral count of peripheral device list available on each part number of STM32F429ZIT6.

The operating range of STM32F429ZIT6 equipment is 1.7 to 3.6V power supply at - 40 to+105 ° C.

The STM32F429ZIT6 device provides 8 kinds of packages, including 100 pin to 216 pin. The set of peripherals included varies depending on the selected device.

These functions make STM32F429ZIT6 microcontroller suitable for a wide range of applications:

• Motor drive and application control

• Medical equipment

• Industrial applications: PLC, inverter, circuit breaker

• Printers and scanners

• Alarm system, video intercom system and HVAC

• Home audio devices
