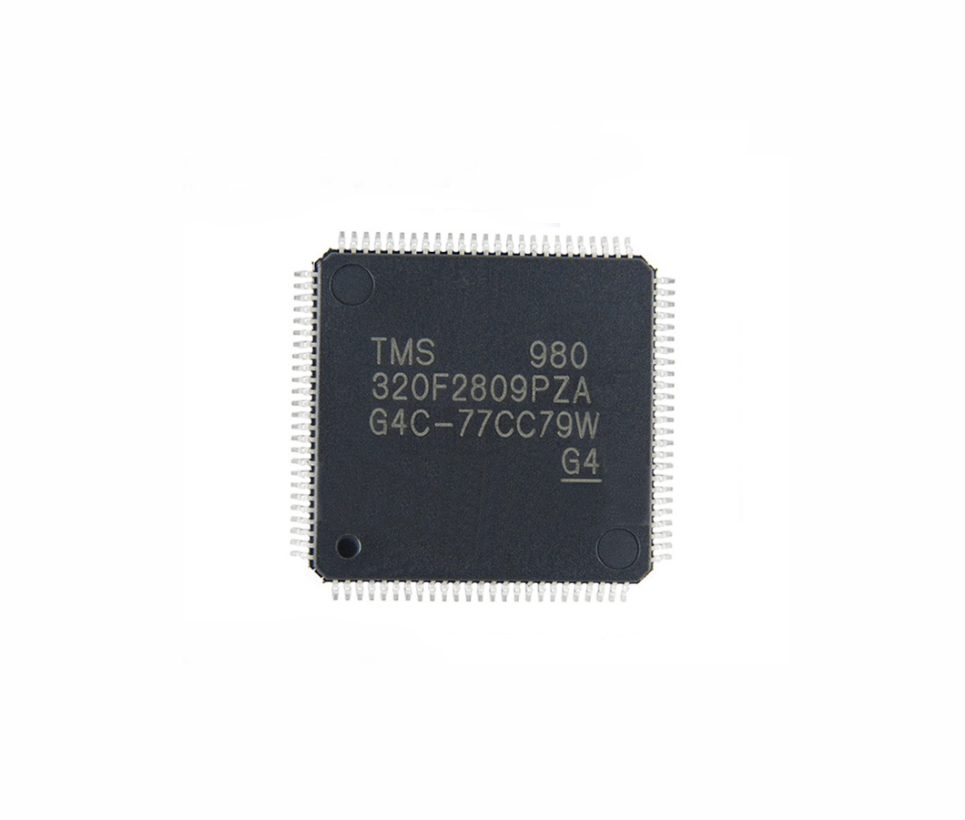

Shenzhen Meiyuxin Technology Co., Ltd. [Recycled Electronic Inventory] TMS320F2809PZA Digital Signal Processor and Controller C2000™ 32-bit MCU with 100MHz frequency, 256KB Flash, 12-channel PWM! ! !

Product Description:

TMS320F2809PZA, TMS320F2808, TMS320F2806, TMS320F2802, TMS320F2801, TMS320F28015, TMS320F28016, TMS320C2802, and TMS320C2801 devices belong to the TMS320C28x family of highly integrated control solutions for demanding DSP and high-performance control applications.

TMS320F2809PZA、TMS320F2808、TMS320F2806、TMS320F2802、TMS320F2801、TMS320C2802、TMS320C2801、TMS320F28015 和 TMS320F28016 分别简写为 F2809、F2808、F2806、F2802、F2801、C2802、C2801、F28015 和 F28016。 Both TMS320F28015 and TMS320F28016 are abbreviated as F2801x. Device Comparison (100MHz Device) and Device Comparison (60MHz Device) provide a summary of the features of each device.

Product Features:

High performance static CMOS technology

100MHz (10ns cycle time)

60MHz (16.67ns cycle time)

Low Power (1.8V Core, 3.3V I/O) Design

Supports JTAG boundary scan

IEEE Std 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture

High-performance 32-bit CPU (TMS320C28x)

16 × 16 and 32 × 32 MAC operation

16 × 16 dual MAC

Harvard bus architecture

Linked operation

Fast interrupt response and handling

Unified Memory Programming Model

Efficient code (using C/C++ and assembly language)

On-chip memory

F2809: 128K × 16 Flash, 18K × 16 SARAM

F2808: 64K × 16 Flash, 18K × 16 SARAM

F2806: 32K × 16 Flash, 10K × 16 SARAM

F2802: 32K × 16 Flash, 6K × 16 SARAM

F2801: 16K × 16 Flash, 6K × 16 SARAM

F2801x: 16K × 16 Flash, 6K × 16 SARAM

1K × 16 OTP ROM (for flash devices only)

C2802: 32K × 16 ROM, 6K × 16 SARAM

C2801: 16K × 16 ROM, 6K × 16 SARAM

Boot ROM (4K × 16)

Has software boot mode (via SCI, SPI, CAN, I2C and parallel I/O)

Standard Math Table

Clock and System Control

On-chip oscillator

Watchdog Timer Module

Any GPIO A pin can be connected to one of three external core interrupts

Peripheral Interrupt Extension (PIE) block to support all 43 peripheral interrupts

Byte order: little endian byte order

128-bit security key/lock

Protect flash/OTP/L0/L1 blocks

Prevent firmware reverse engineering

Three 32-bit CPU timers

Enhanced Control Peripherals

Up to 16 PWM outputs

Up to 6 HRPWM outputs at 150ps MEP resolution

Up to 4 capture inputs

Up to 2 quadrature encoder interfaces

Up to 6 32-bit/6 16-bit timers

Serial Port Peripherals

Up to 4 SPI modules

Up to 2 SCI (UART) modules

Up to 2 CAN modules

1 Inter-Integrated Circuit (I2C) bus

12-bit ADC, 16 channels

2 × 8 channel input multiplexer

Two sample and hold

single/simultaneous conversion

Fast Conversion Rate:

80ns - 12.5MSPS (F2809 only)

160ns - 6.25MSPS (280x)

267ns - 3.75MSPS (F2801x)

Internal or external benchmark

Up to 35 individually programmable multiplexed GPIO pins with input filtering

Advanced Simulation Features

Analysis and breakpoint functions

Real-time debugging via hardware

Development support includes

ANSI C/C++ compiler/assembler/linker

Source code for Code Composer Studio™ IDE project examples

SYS/BIOS

Digital Motor Control and Digital Power Software Libraries

Low power mode to save energy

Support idle, standby, shutdown modes

Disable individual peripheral clocks

Package Options

Thin Quad Flatpack (PZ)

MicroStar BGA™ (GGM, ZGM)

temperature options

A: -40°C to 85°C (PZ, GGM, ZGM)

S: -40°C to 125°C (PZ, GGM, ZGM)

Q: -40°C to 125°C (PZ)

(AEC-Q100 qualified for automotive applications)
