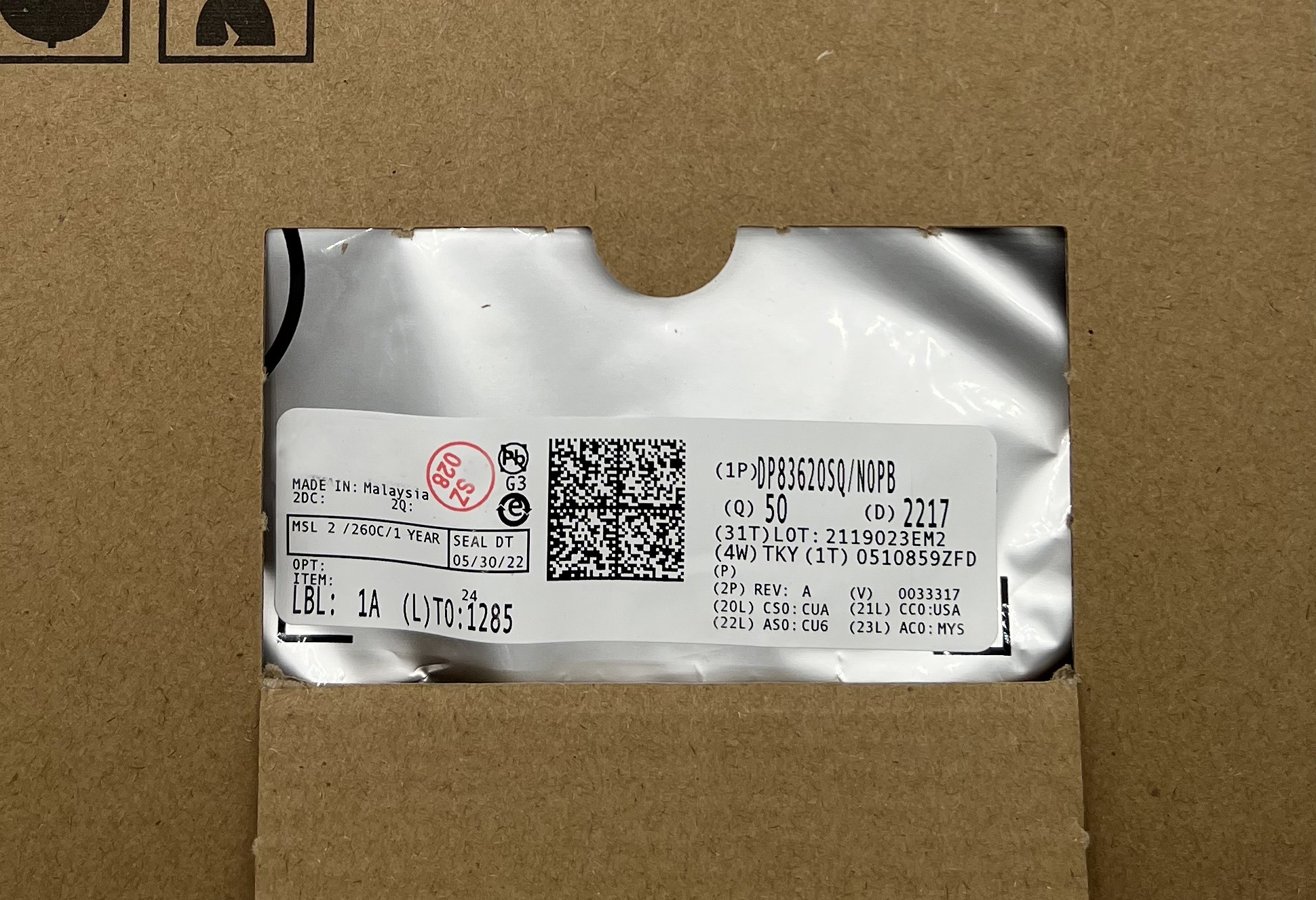

Shenzhen Meiyuxin Technology Co., Ltd. [TI agent] sells imported original DP83620SQ/NOPB 10/100Mbps Ethernet PHY transceiver with JTAG and fiber interface, industrial temperature range! ! !

Description

DP83620SQ/NOPB is a highly reliable, feature rich device suited for industrial applications. The DP83620 offers low power consumption, including several intelligent power down states. In addition to low power, the DP83620 is optimized for cable length performance far exceeding IEEE specifications. The DP83620 includes a 25MHz clock out. This allows the application to be designed with a minimum of external parts, which in turn results in the lowest possible total cost of the solution.

DP83620SQ/NOPB offers innovative diagnostic features unique to Texas Instruments, including dynamic monitoring of link quality during standard operation for fault prediction. These advanced features allow the system designer to implement a fault prediction mechanism to detect and warn of deteriorating and changing link conditions. This single port fast Ethernet transceiver can support both copper and fiber media. The DP838620 also provides flexibility by supporting both MII and RMII interfaces.

Features

Deterministic, Low Transmit and Receive Latency

Selectable Frequency Synchronized Clock Output

Dynamic Link Quality Monitoring

TDR Based Cable Diagnostic and Cable Length Detection

10/100 Mb/s Packet BIST (Built in Self Test)

Error-Free Operation up to 150 Meters CAT5 Cable

ESD Protection - 8 kV Human Body Model

2.5 V and 3.3 V I/Os and MAC Interface

Auto-MDIX for 10/100 Mbps

Auto-Crossover in Forced Modes of Operation

RMII Rev. 1.2 and MII MAC Interface

RMII Master Mode

Synchronous Ethernet

25 MHz MDC and MDIO Serial Management Interface

IEEE 802.3u 100BASE-FX Fiber Interface

IEEE 1149.1 JTAG

Programmable LED Support for Link, 10 /100 Mb/s Mode, Duplex, Activity, and Collision Detect

Optional 100BASE-TX Fast Link Loss Detection

Industrial Temperature Range

48 Pin WQFN Package (7mm) x (7mm)

Applications

• Factory Automation

• General Embedded Applications
