Shenzhen Meiyuxin Technology Co., Ltd. [Recycled Electronic Waste] INA148UA +-200V common mode voltage difference amplifier! ! !

DESCRIPTION

 INA148UA is a precision, low-power, unity-gain difference amplifier with a high common-mode input voltage range. It consists of a monolithic precision bipolar op amp with a thin-film resistor network.

 INA148UA The on-chip resistors are laser trimmed for an accurate 1V/V differential gain and high common-mode rejection. Excellent temperature tracking of the resistor network maintains high gain accuracy and common-mode rejection over temperature. The INA148 will operate on single or dual supplies.

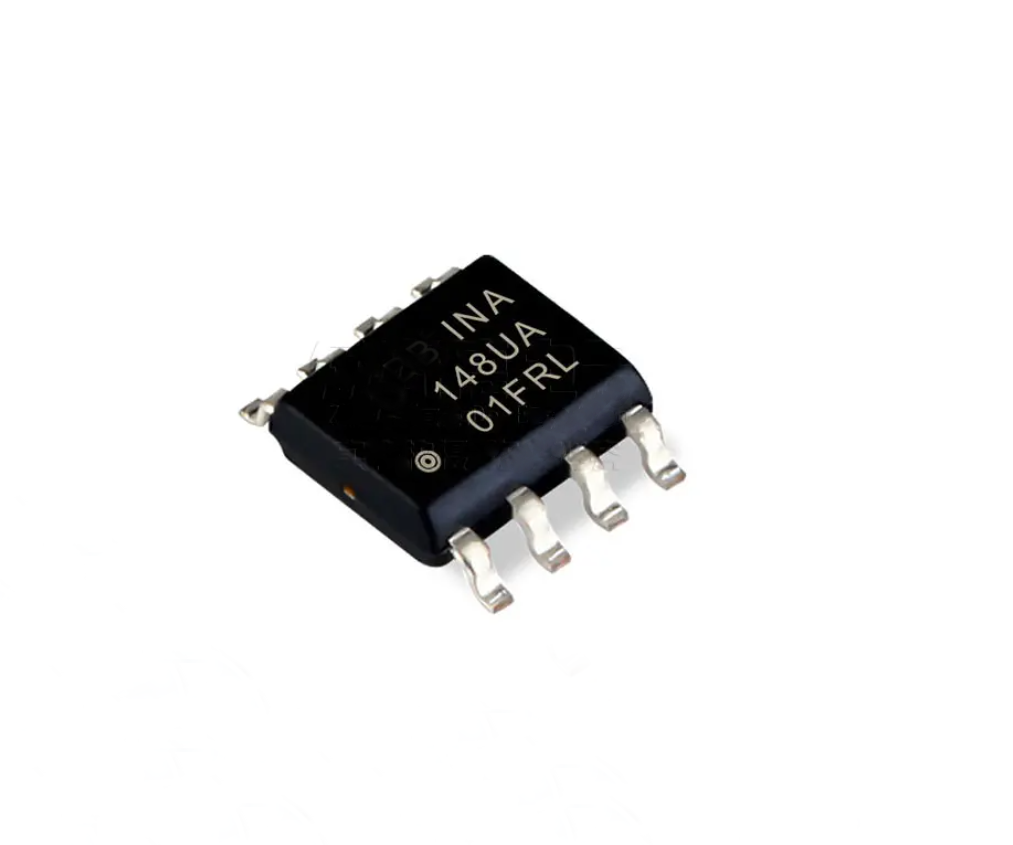

 INA148UA  is available in a small SO-8 surface-mount package and it is specified for the –40°C to +85°C extended industrial temperature range.

FEATURES

● HIGH COMMON-MODE VOLTAGE:

 +75V at VS = +5V

 ±200V at VS = ±15V

● FIXED DIFFERENTIAL GAIN = 1V/V

● LOW QUIESCENT CURRENT: 260µA

● WIDE SUPPLY RANGE:

Single Supply: 2.7V to 36V

Dual Supplies: ±1.35V to ±18V

● LOW GAIN ERROR: 0.075% max

● LOW NONLINEARITY: 0.002% max

● HIGH CMR: 86dB

● SO-8 PACKAGE

APPLICATIONS

● CURRENT SHUNT MEASUREMENTS

● DIFFERENTIAL SENSOR AMPLIFIERS

● LINE RECEIVERS

● BATTERY POWERED SYSTEMS

● AUTOMOTIVE INSTRUMENTATION

● STACKED CELL MONITORS
