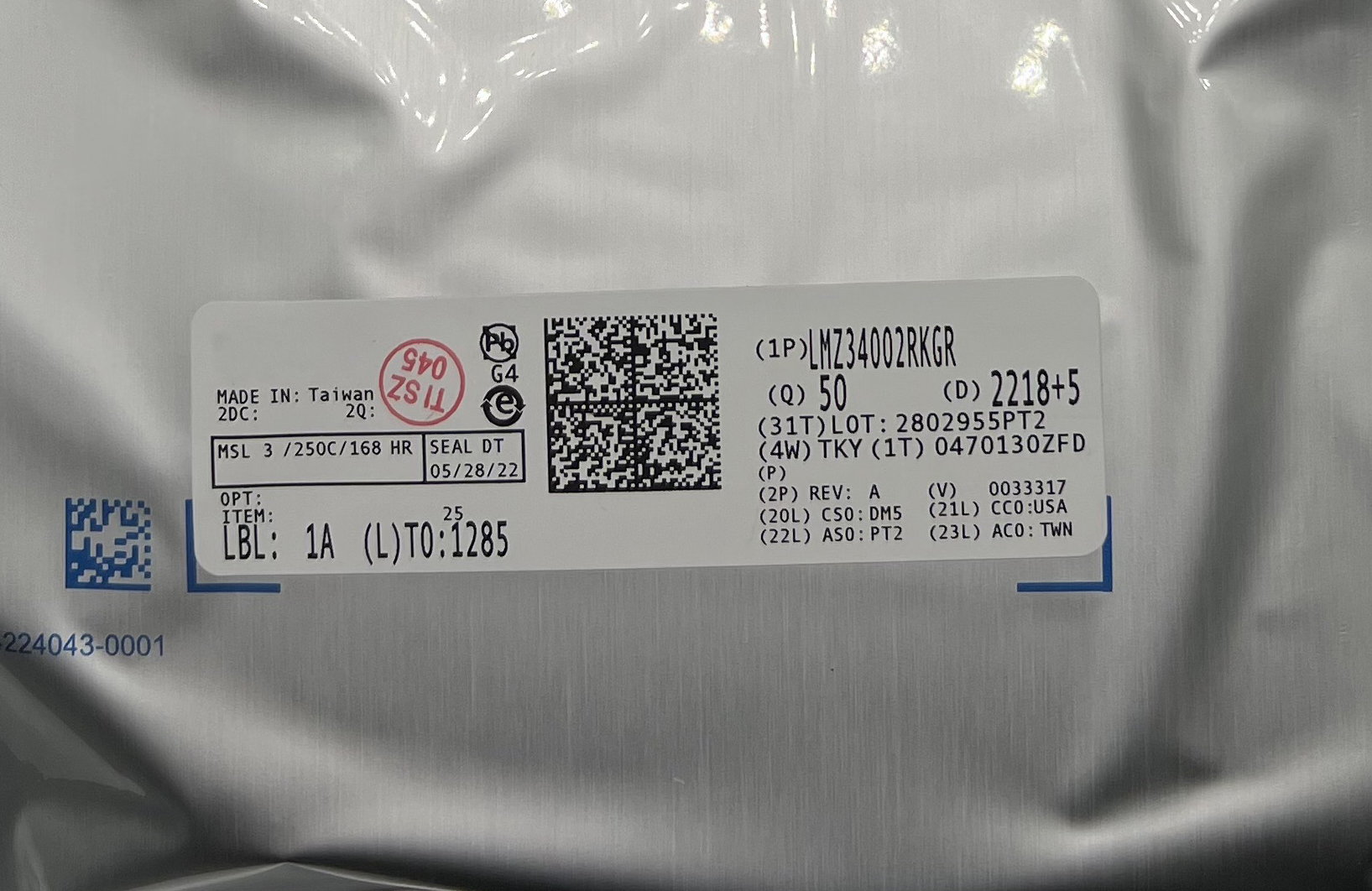

Shenzhen Meiyuxin Technology Co., Ltd. [TI Automotive Product Distributor] imported LMZ34002RKGR 4.5V to 40V, 2A negative output power module!

Product Description:

The LMZ34002RKGR SIMPLE SWITCHER® power module is an easy-to-use negative output voltage power module that combines a 15W DC/DC converter with shielded inductor and passives in a small QFN package. This total power solution requires only five external components and eliminates loop compensation and magnetic selection.

The LMZ34002RKGR 9×11×2.8mm QFN package can be easily soldered to a printed circuit board and enables a compact design with fewer components and excellent power dissipation. The LMZ34002 offers the flexibility and feature set of discrete designs and is ideal for powering a wide variety of ICs and analog circuits requiring negative output voltages. Advanced packaging technology provides a robust and reliable power solution compatible with standard QFN placement and test techniques.

Features:

A complete integrated power solution enables

Small size and flat design

Wide Input Voltage Range from 4.5V to 40V

Adjustable Output Voltage Range from –3V to –17V

Output current up to 2A

45V surge capability

Sync with external clock

Adjustable slow start

Programmable Undervoltage Lockout (UVLO)

Output overcurrent protection

Overheating protection

Operating temperature range: -40°C to +85°C

Enhanced thermal performance; 14°C/W

Complies with EN55022 Class B emissions

- Integrated shielded inductor

Applications:

Industrial and Motor Control

Automatic test equipment

Bipolar Amplifiers in Audio/Video

High Density Power System
