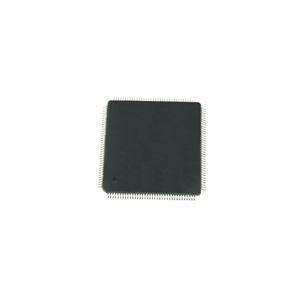

STM32H753ZIT6 devices are based on a high-performance Arm® Cortex®-M7 32-bit RISC core running at up to 480 MHz. The Cortex® -M7 core has a floating-point unit (FPU) that supports Arm® double-precision (IEEE 754 compliant) and single-precision data processing instructions and data types. STM32H753xI devices support a full set of DSP instructions and a Memory Protection Unit (MPU) to enhance application security.

STM32H753ZIT6 devices contain high-speed embedded memory with dual banks of 2 MB of RAM, up to 1 Mbyte of RAM (including 192 KB of TCM RAM, up to 864 KB of user SRAM and 4 KB of backup SRAM), and a wide range of Enhanced I/O and peripheral bus matrix to APB bus, AHB bus, 2x32-bit multi-AHB and multilayer AXI interconnect usage rights supporting internal and external memory.

STM32H753ZIT6 All devices provide three ADCs, two DACs, two ultra-low-power comparators, one low-power RTC, one high-resolution timer, twelve general-purpose 16-bit timers, two motor PWM timer controls , five low-power timers, a true random number generator (RNG), and a cryptographic acceleration cell. These devices support four digital filters (DFSDM) for the external sigma-delta modulator. They also have standard and advanced communication interfaces.

Product Specifications:

Product Category: ARM Microcontrollers - MCUs

RoHS: Details

Series: STM32H7

Installation style: SMD/SMT

Package / Box: LQFP-144

Core: ARM Cortex M7

Program memory size: 2 MB

Data bus width: 32 bit

ADC resolution: 3 x 16 bit

Maximum clock frequency: 400 MHz

Number of I/Os: 114 I/O

Data RAM size: 1 MB

Supply Voltage - Min: 1.62 V

Supply Voltage - Max: 3.6 V

Minimum working temperature: - 40 C

Maximum working temperature: + 85 C

Package: Tray

DAC Resolution: 12 bit

Data Ram Type: SRAM

Interface type: CAN, I2C, SAI, SDIO, SPI, USART, USB

Humidity Sensitivity: Yes

Number of ADC channels: 20 Channel

Product: MCU+FPU

Product Type: ARM Microcontrollers - MCU

Program memory type: Flash

Subcategory: Microcontrollers - MCU

Brand name: STM32

Watchdog Timer: Watchdog Timer, Windowed

Unit weight: 1.315 g
