TPS7A8101DRBR

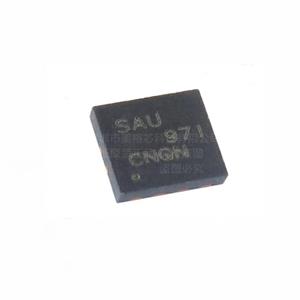

The pictures are for reference only, please refer to the product specifications.

< >

Product Category：Linear & low-dropout (LDO) Regulators

Manufacturer: TI

Data Manual:

TPS7A8101DRBR.pdf

Encapsulation:

SON8

Delivery Date:

New and Original

Stock:

10000 Piece

Number:

Inquiry Add Contrast

Technical Parameter

Manufacturer
TI
Packing
Original Genuine Packaging
Describe
1A, High PSRR, Adjustable Ultra Low Dropout Regulator With Enable
Package
SON8

Product Details

The TPS7A8101 low-dropout linear regulator (LDO) offers very good performance in noise and power-supply rejection ratio (PSRR) at the output. This LDO uses an advanced BiCMOS process and a PMOSFET pass device to achieve very low noise, excellent transient response, and excellent PSRR performance.

The TPS7A8101 device is stable with a 4.7-µF ceramic output capacitor, and uses a precision voltage reference and feedback loop to achieve a worst-case accuracy of 3% over all load, line, process, and temperature variations.

This device is fully specified over the temperature range of TJ = –40°C to 125&#deg;C and is offered in a 3-mm × 3-mm, SON-8 package with a thermal pad.

Features for the TPS7A8101：

Low-Dropout 1-A Regulator with Enable

Adjustable Output Voltage: 0.8 V to 6 V

Wide-Bandwidth High PSRR:

80 dB at 1 kHz

60 dB at 100 kHz

54 dB at 1 MHz

Low Noise: 23.5 µVRMS typical (100 Hz to

100 kHz)

Stable with a 4.7-µF Capacitance

Excellent Load and Line Transient Response

3% Overall Accuracy (Over Load, Line,

Temperature)

Overcurrent and Overtemperature Protection

Very Low Dropout: 170 mV Typical at 1 A

Package: 3-mm × 3-mm SON-8
