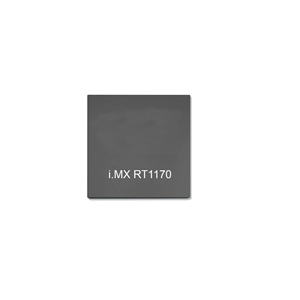

The MIMXRT1172AVM8A i.MX RT1170 Crossover Microcontroller is a high-performance Arm® Cortex®-M based device with a total CoreMarks® of 6468, with Cortex-M7 running at 1GHz and Cortex-M4 running at 400MHz. The i.MX RT1170 MCU is part of the NXP EdgeVerse™ edge computing platform. These MCUs feature real-time, low-latency response, low-power operation, and high integration. Typical applications include ML-based edge applications, industrial computing design, motor control and power conversion, personal health, fitness, and voice-enabled IoT devices.

Product parameters:

Product Category: ARM Microcontrollers - MCUs

RoHS: Details

Series: i.MX-RT1170

Installation style: SMD/SMT

Package / Box: BGA-289

Core: ARM Cortex M7

Data bus width: 32 bit

ADC resolution: 2 x 12 bit

Maximum clock frequency: 800 MHz

Number of I/Os: 174 I/O

Data RAM size: 2 MB

Supply voltage - Min: 1.1 V

Supply Voltage - Max: 1.15 V

Data Ram Type: SRAM

Interface type: CAN, Ethernet, QSPI, SPI, UART, USB

Humidity Sensitivity: Yes

Processor Family: i.MX

Product: MCU+FPU

Product Type: ARM Microcontrollers - MCU

Subcategory: Microcontrollers - MCU

Watchdog Timer: Watchdog Timer

Part Number Alias: 935416775557
