CC3220MODSM2MOBR 32-bit Arm Cortex-M4 wireless module

Time:2023-03-27   Views:

Shenzhen Meiyuxin Technology Co., Ltd.【distributing TI wireless modules】CC3220MODSM2MOBR SimpleLink™ 32-bit Arm Cortex-M4 Wi-Fi CERTIFIED™ wireless module Quality assurance New original! ! !


Product Description:

CC3220MODSM2MOBR Start your design with this fully programmable wireless microcontroller (MCU) module that is FCC, IC, CE, MIC, and SRRC certified and has built-in Wi-Fi connectivity. The SimpleLink™ CC3220MODx and CC3220MODAx family of modules from Texas Instruments™ are designed for the Internet of Things and are wireless modules integrating two physically isolated on-chip MCUs.


The CC3220MODSM2MOBR applications processor is an Arm® Cortex®-M4 MCU with 256KB of user-dedicated RAM (1MB XIP Flash on the CC3220SF model).


A network processor MCU that runs all Wi-Fi® and Internet logic layers. This ROM-based subsystem includes an 802.11b/g/n radio, baseband, and MAC with a powerful encryption engine featuring 256-bit encryption for fast and secure Internet connections.


The CC3220MODSM2MOBR wireless MCU family is part of TI's second-generation Internet-on-a chip™ family of solutions. This generation introduces new features and capabilities that further simplify Internet connectivity. New features include:


IPv6

Enhanced Wi-Fi configuration

Optimized Low Power Management

Enhanced file system security

Wi-Fi AP can connect up to 4 base stations

More BSD sockets can be opened simultaneously—up to 16 BSD sockets (6 of which support secure HTTPS)

HTTPS supported

Support for RESTful APIs

Asymmetric key encryption library


The CC3220MODSM2MOBR wireless MCU family supports the following modes: Base Station, AP, and Wi-Fi Direct®. The CC3220MODx and CC3220MODAx modules also support WPA2 and WPA3 Personal and Enterprise security. This subsystem contains embedded TCP/IP and TLS/SSL stacks, HTTP server, and multiple Internet protocols. The module supports multiple Wi-Fi configuration methods, including HTTP over AP mode, SmartConfig™ technology, and WPS2.0.


The power management subsystem includes an integrated DC/DC converter that supports a wide supply voltage range. The subsystem supports low-power modes such as low-power deep-sleep, RTC hibernate (consumes only 5 µA), and shutdown mode (consumes only 1 µA) to help extend battery life.


The module contains peripherals such as fast parallel camera interface, I2S, SD, UART, SPI, I2C and 4-channel ADC.


The SimpleLink CC3220MODSM2MOBR module family has 4 different module models: CC3220MODS, CC3220MODSF, CC3220MODA and CC3220MODASF.


The CC3220MODS and CC3220MODAS modules contain application-specific embedded RAM (256KB) for handling code and data. Additionally, the CC3220MODAS includes an integrated antenna.


The CC3220MODSF and CC3220MODASF modules contain application-specific serial Flash (1MB) and RAM (256KB) for handling code and data. Additionally, the CC3220MODASF includes an integrated antenna.

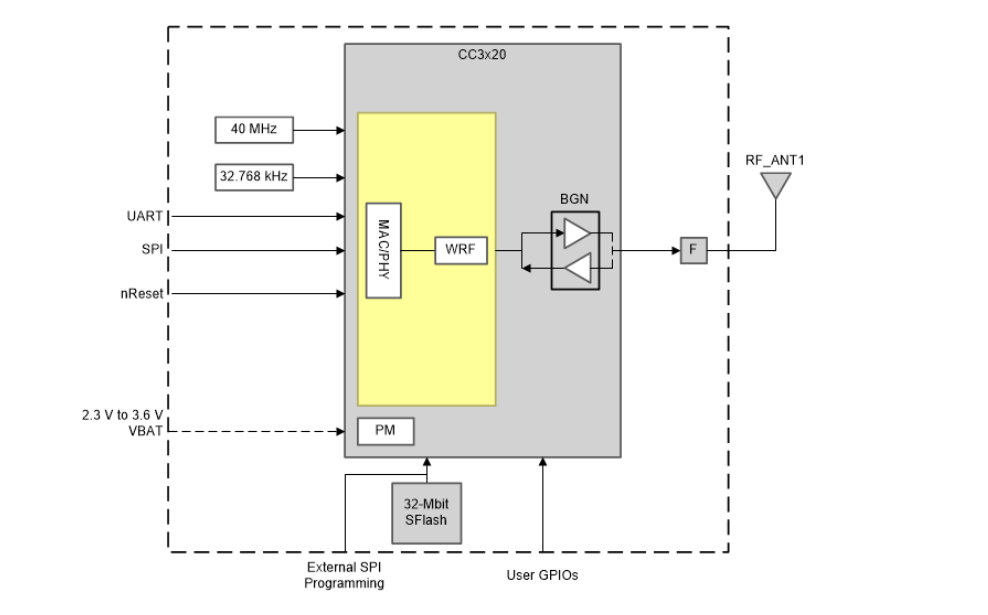

These 4 modules integrate 40MHz crystal, 32.768kHz RTC clock, 32Mb SPI serial flash, RF filter and passive components. These modules also have other security features such as encrypted and authenticated file system, user IP encryption and authentication, secure boot (authentication and integrity verification of the application image while flash booting), and more.


The CC3220MODx and CC3220MODAx devices are part of the SimpleLink™ MCU platform, which includes Wi-Fi, Bluetooth Low Energy, Sub-1 GHz, and host MCUs. They all share a common, easy-to-use development environment with a single-core software development kit (SDK) and rich toolset. After one-time integration of the SimpleLink platform, users can add any combination of devices from the portfolio to your design. The ultimate goal of the SimpleLink platform is to ensure full code reuse as design requirements change.
