Product Description:

Start your design with this fully programmable wireless microcontroller (MCU) module that is FCC, IC/ISED, ETSI/CE, MIC, and SRRC certified and has built-in dual-band Wi-Fi connectivity. The module integrates a 40MHz crystal, 32.768kHz RTC clock, 32Mb SPI serial flash, RF filter, duplexer and passives.

SimpleLink™ CC3235MODx modules are available in two models:

The CC3235MODS includes 256KB RAM, IoT network security, device identity and keys, and MCU-level security features such as file system encryption, user IP (MCU image) encryption, secure boot, and debug security.

CC3235MODSF builds on CC3235MODS and integrates a user-dedicated 1MB executable flash memory in addition to 256KB RAM.

The SimpleLink™ CC3235MODAx module is available in two models:

The CC3235MODAS includes 256KB of RAM, IoT network security, device identity and keys, and MCU-level security features such as file system encryption, user IP (MCU image) encryption, secure boot, and debug security.

The CC3235MODASF builds on the CC3235MODAS and integrates a user-dedicated 1MB executable flash memory in addition to 256KB RAM.

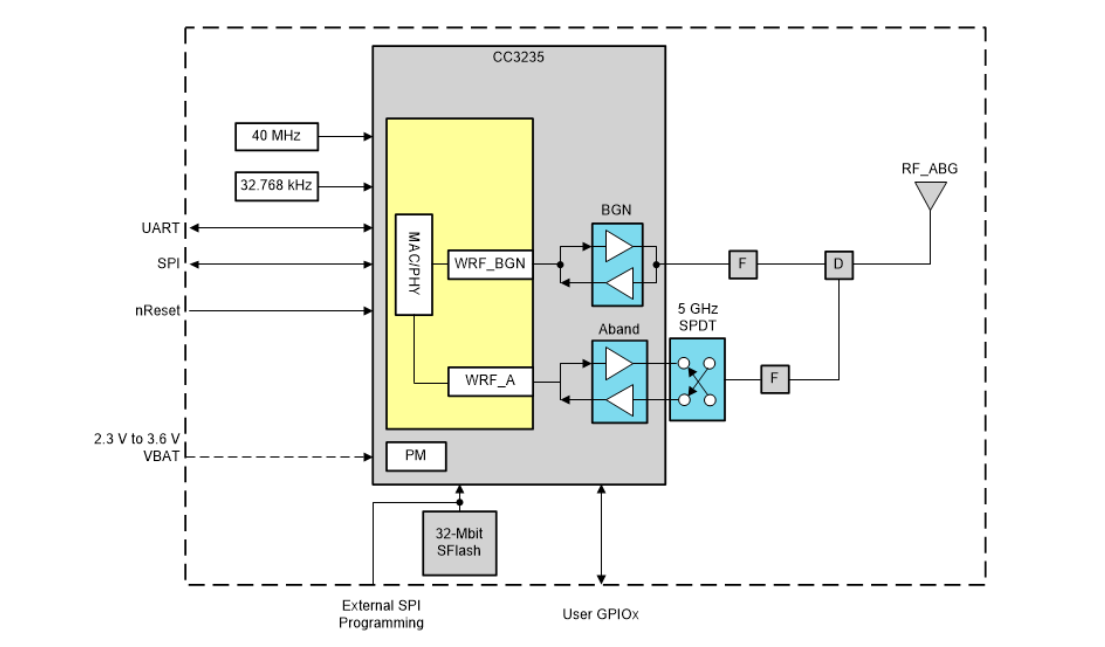

Designed specifically for IoT, Texas Instruments' SimpleLink™ Wi-Fi® CC3235MODx and CC3235MODAx family of modules are wireless modules that integrate two physically isolated on-chip MCUs.

Applications Processor - Arm Cortex-M4 MCU with user-dedicated 256KB RAM and optional 1MB executable Flash.

Network Processor to Run All Wi-Fi and Internet Logical Layers This ROM-based subsystem completely offloads the host MCU and includes an 802.11 a/b/g/n dual-band 2.4GHz and 5GHz radio, baseband and MAC with powerful hardware encryption engine.

This generation introduces new features that further simplify IoT connectivity. Key new features include:

802.11a/b/g/n: 2.4GHz and 5GHz support

2.4GHz Coexistence with Bluetooth ® Low Energy Radio

antenna diversity

Enhanced security with internal IC validated to FIPS 140-2 Level 1: Certified.

More secure sockets can be opened simultaneously (up to 16)

Certificate Enrollment Request (CSR)

Online Certificate Status Protocol (OCSP)

Wi-Fi Alliance Certified for IoT Applications with Low Power Capabilities and More

Off-host mode to reduce template package transfer load

Improved quick scan

Application

• For IoT applications such as:

– Medical and healthcare

• Multi-parameter patient monitor

• Electrocardiogram (ECG)

• Electronic hospital beds and bed controllers

• telehealth system

– Building and home automation:

• HVAC systems and thermostats

• Video surveillance, video doorbells and low-power cameras

• Building security systems and electronic locks

– electrical appliances

– Asset Tracking

– Factory automation

– Grid infrastructure
