Product Description:

The F280037CPTRQ1 is a device in the C2000™ family of real-time microcontrollers, a family of scalable, ultra-low latency devices designed to improve the efficiency of power electronics, including but not limited to: high power density, high switching frequency, and support for the use of GaN and SiC technology. These applications include:

• motor driver

• electrical appliances

• Hybrid, electric and powertrain systems

• Solar and EV charging

• Digital Power

• Body electronics and lighting

• Test and Measurement

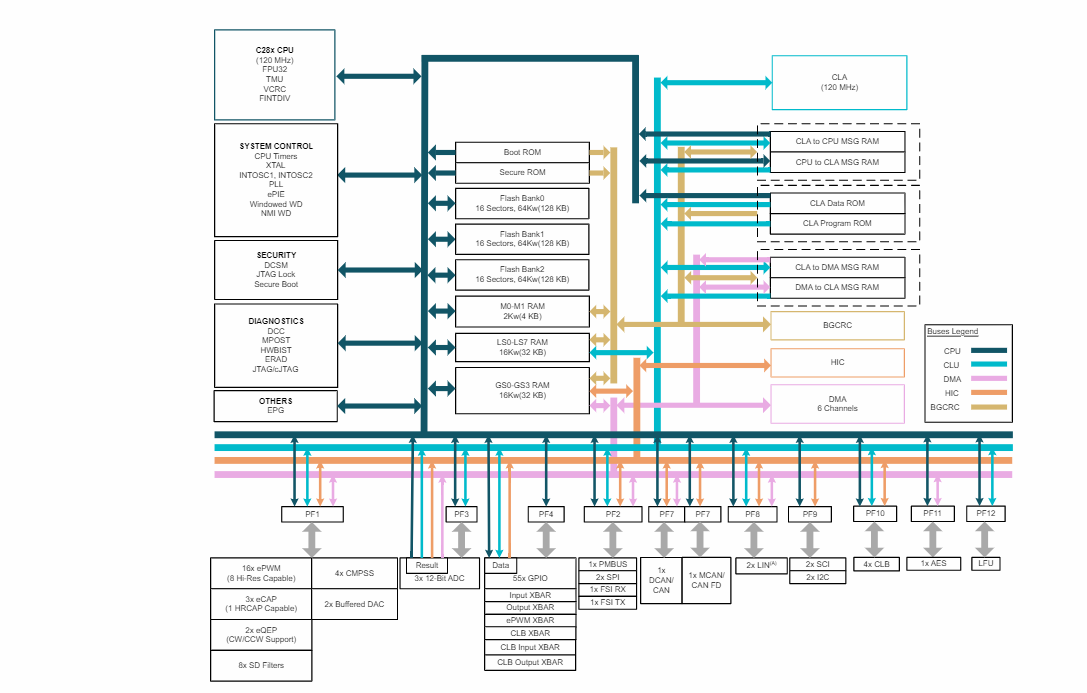

The F280037CPTRQ1 real-time control subsystem is based on TI's 32-bit C28x DSP core, which provides 120MHz of signal processing performance for floating-point or fixed-point code running from on-chip flash or SRAM. The performance of the C28x CPU is further enhanced by a Floating Point Unit (FPU), a Trigonometric Function Accelerator (TMU), and a VCRC (Cyclic Redundancy Check) extension instruction set, which accelerates key common algorithms for real-time control systems. The CLA is able to offload a large number of common tasks from the main C28x CPU. The CLA is a standalone 32-bit floating-point math accelerator that executes in parallel with the CPU.

In addition, the CLA comes with its own dedicated memory resources, which provide direct access to key peripherals required in a typical control system. ANSI C subset support is standard, as are key features such as hardware breakpoints and hardware task switching.

The F280037CPTRQ1 supports up to 384KB (192KW) of flash memory organized into three 128KB (64KW) banks for parallel programming and execution. Up to 69KB (34.5KW) of on-chip SRAM can also be used to supplement Flash. Live firmware update hardware enhancements on the F28003x allow fast context switching from old to new firmware to minimize application downtime when updating device firmware.

High-performance analog blocks are integrated on the F28003x real-time microcontroller (MCU) and tightly coupled with the processing unit and PWM unit to provide better real-time signal chain performance. Each of the 16 PWM channels supports frequency-independent resolution modes to control various power stages from three-phase inverters to power factor correction and advanced multilevel power topologies.

Applications:

electrical appliance

– Air conditioner outdoor unit

• Building automation

– Drive control of elevator door automatic opening and closing device

• Industrial machinery and machine tools

– Automatic sorting equipment

- textile machine

• AC inverters and variable frequency drives

– AC drive control module

– AC drive position feedback

– AC drive power stage modules

• Linear motor transport system

– Linear motor power stage

• Single and multi-axis servo drives

– Servo drive position feedback

– Servo drive power stage modules

• Speed-controlled BLDC driver

– AC Input BLDC Motor Driver

– DC Input BLDC Motor Driver

• Factory automation

– Robot servo drive

– Mobile robot motor control

- position sensor

• Industrial power supply

– Industrial AC-DC

• UPS

– Three-phase UPS

– Single phase online UPS

• Telecom and server power supplies

– Commercial DC/DC

– Commercial networking and server PSUs

– Commercial communication power rectifier
