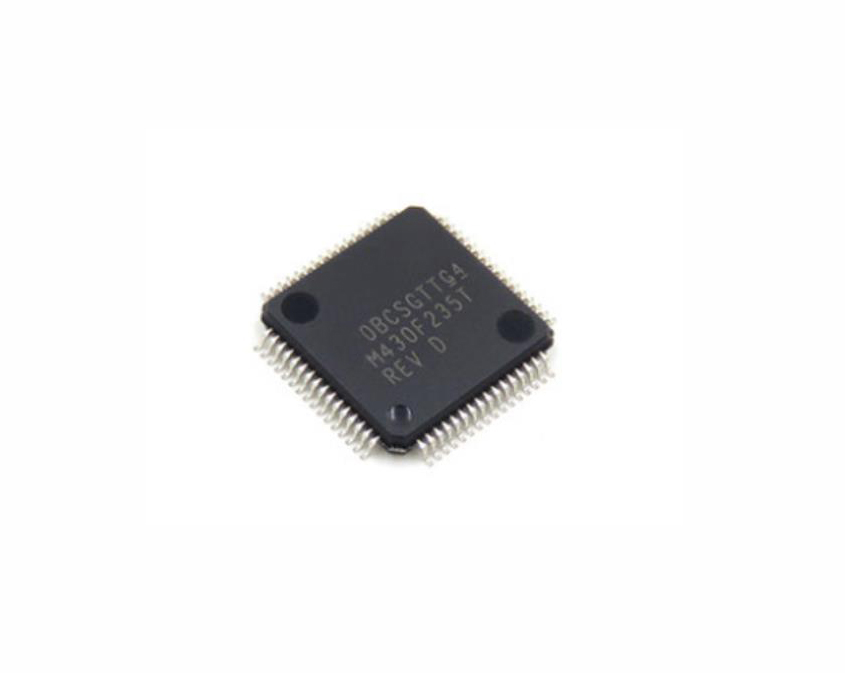

Shenzhen Meiyuxin Technology Co., Ltd. [microcontroller agent] MSP430F235TPMR 16MHz MCU with 16KB flash memory, 512B SRAM, 10-bit ADC, 2 operational amplifiers and I2C/SPI/UART! ! !

Product Description:

The MSP430F235TPMR family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals for a variety of applications. This architecture, combined with five low-power modes, is optimized for extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers and constant generators for maximum coding efficiency. A Digitally Controlled Oscillator (DCO) wakes up from low-power mode to run mode in less than 1µs.

MSP430F235TPMR series microcontrollers configured with two built-in 16-bit timers, a fast 12-bit analog-to-digital (A/D) converter (not available on MSP430F24x1), one comparator, four (two on MSP430F23x ) Universal Serial Communications Interface (USCI) module, and up to 48 I/O pins. MSP430F24x1 devices are identical to MSP430F24x devices except that they do not implement the ADC12 module. The MSP430F23x devices are identical to the MSP430F24x devices except integrating a reduced Timer_B, a USCI module, and less RAM.

Type MSP430F235TPMR applications include sensor systems, industrial control applications, handheld instruments, and more.

Product Features:

Low supply voltage range, 1.8V to 3.6V

ultra low power consumption

Active Mode: 270µA at 1MHz and 2.2V

Standby Mode (VLO): 0.3μA

Shutdown Mode (RAM Retention): 0.1 μA

Ultra-fast wake-up from standby mode in less than 1μs

16-bit Reduced Instruction Set (RISC) Architecture, 62.5ns Instruction Cycle Time

Basic clock module configuration:

Internal frequency up to 16MHz

Internal Very Low Power Low Frequency (LF) Oscillator

32kHz crystal oscillator

Up to 16MHz Internal Frequency with 4 ±1% Accurate Calibration Frequencies

resonator

External Digital Clock Source

external resistor

12-Bit Analog-to-Digital (A/D) Converter with Internal Reference, Sample-and-Hold, and Auto-Scan

16-bit Timer_A with 3 capture/compare registers

16-bit Timer_B with 7 capture/compare registers (with shadow registers)

4 Universal Serial Communication Interfaces (USCI)

USCI_A0 and USCI_A1

Enhanced Universal Asynchronous Receiver Transmitter (UART) with Auto-Baud Detection

IrDA encoder and decoder

Synchronous Serial Peripheral Interface (SPI)

USCI_B0 and USCI_B1

I2C

Synchronous Serial Peripheral Interface (SPI)

On-chip comparator

Supply Voltage Supervisor/Monitor with Programmable Level Detection

brownout detector

bootloader

Serial on-board programming, no external programming voltage required, programmable code protection by security fuse

The series of products include:

MSP430F233

8KB+256B flash memory,

1KB RAM

MSP430F235

16KB+256B flash memory

2KB RAM

MSP430F247, MSP430F2471 (1)

32KB+256B flash memory

4KB RAM

MSP430F248, MSP430F24814

8KB+256B flash memory

4KB RAM

MSP430F249, MSP430F2491

60KB+256B flash memory

2KB RAM

MSP430F2410

56KB+256B flash memory

4KB RAM
