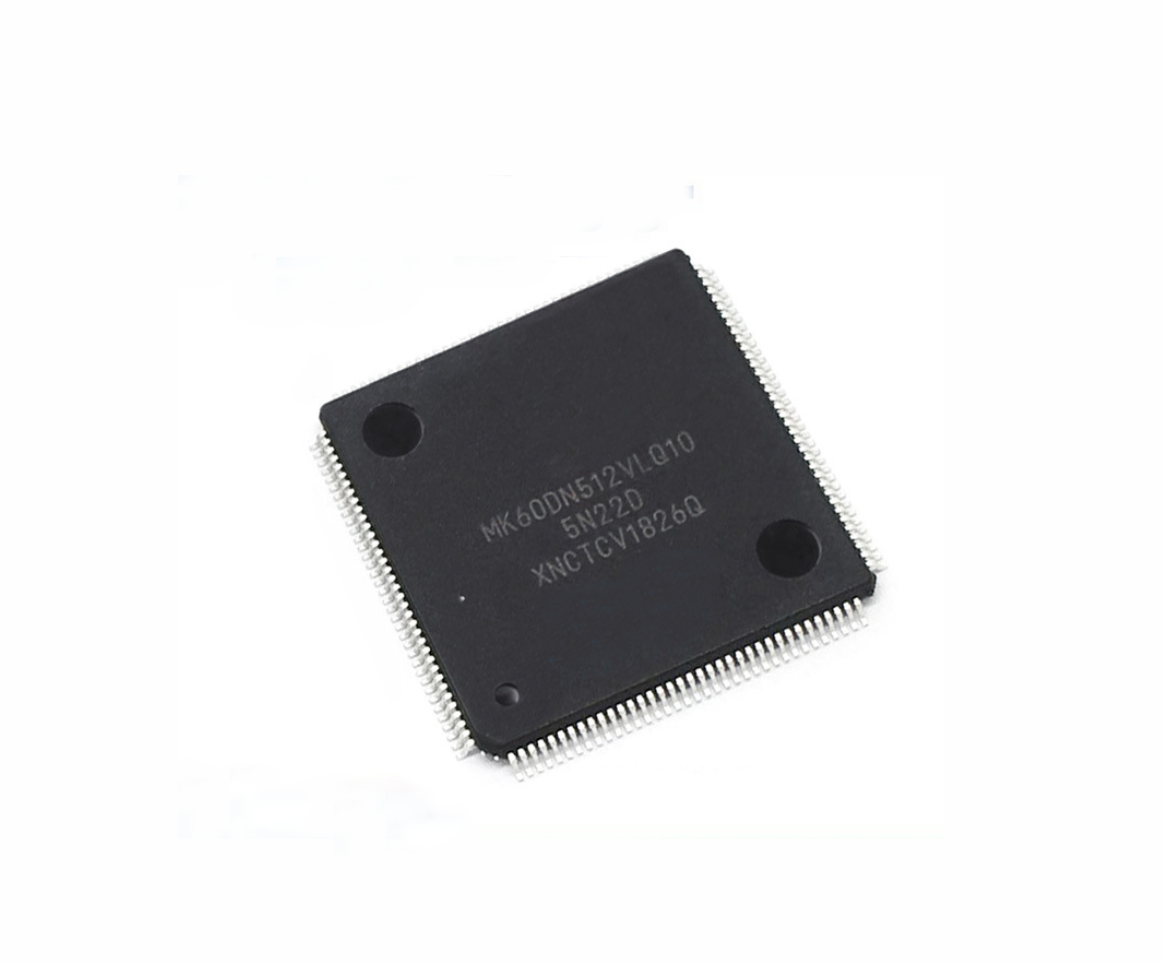

Shenzhen Meiyuxin Technology Co., Ltd. [MCU agent] MK60DN512VLQ10 mixed-signal integrated microcontroller, based on Arm® Cortex®-M4 core ARM microcontroller - MCU! ! !

Product Description:

The MK60DN512VLQ10 Kinetis® K60 100 MHz IEEE® 1588 Ethernet MCU is built on the Arm® Cortex® -M4 core with advanced analog integration and serial communications. Available in wafer-level chip-level packages (WLCSPs) as low as 5 mm x 5 mm, these devices maximize board space savings, enhance performance and support miniaturization of existing applications with extremely short interconnects. The series features the comprehensive support architecture and scalability inherent in the Kinetis product portfolio.

Features:

Ultra low power consumption

10 low-power modes that provide power and clock gating for optimal peripheral activity and recovery times. Stop Current <2 µA, Run Current <350 uA/MHz, Stop Mode Wakeup Time 4 µs

Extended battery life with full memory and analog operation down to 1.71 V

Low-leakage wake-up unit with up to 8 built-in modules and 16 pins as a wake-up source for low-leakage stop (LLS) mode/very low-leakage stop (VLLS) mode

Low-power timers support continuous system operation in low-power states

Flash, SRAM and FlexMemor

256 KB - 512 KB Flash. Support fast access, high reliability, and provide 4-level security protection

64 KB-128 KB SRAM

FlexMemory: 32 Bytes - 4 KB User segmentable byte write/erase EEPROM for datasheet/system data. More than 10M erasable EEPROM and 70 µs flash memory (no data loss or corruption in the event of a power failure). Program and erase functions require no user or system intervention and are fully operational down to 1.71V. Up to 256 KB additional space for additional program code, data or EEPROM backup

Mixed Signal Capability

Two high-speed 16-bit analog-to-digital converters (ADCs) with configurable resolution. Operates in single or differential output mode for improved noise rejection. 863 ns conversion time with programmable delay block triggering

Two 12-bit digital-to-analog converters (DACs) that can generate analog waveforms for audio applications

3 high-speed comparators provide fast and accurate motor overcurrent protection by placing pulse width modulation (PWM) in a safe state

Analog reference voltages provide accurate reference values for analog modules, ADCs and DACs, replacing external reference voltages, reducing system cost

Performance

Cortex-M4 core with DSP, 100 MHz clock, single-cycle MAC and single-instruction-multiple-data (SIMD) extensions

Up to 16 channels of DMA for peripherals and memory for lower CPU load and faster system throughput

Crossbar supports concurrent multi-master bus access, increasing bus bandwidth

Independent flash banks can execute code and firmware updates concurrently without compromising performance or requiring complex coding routines
