Product Description:

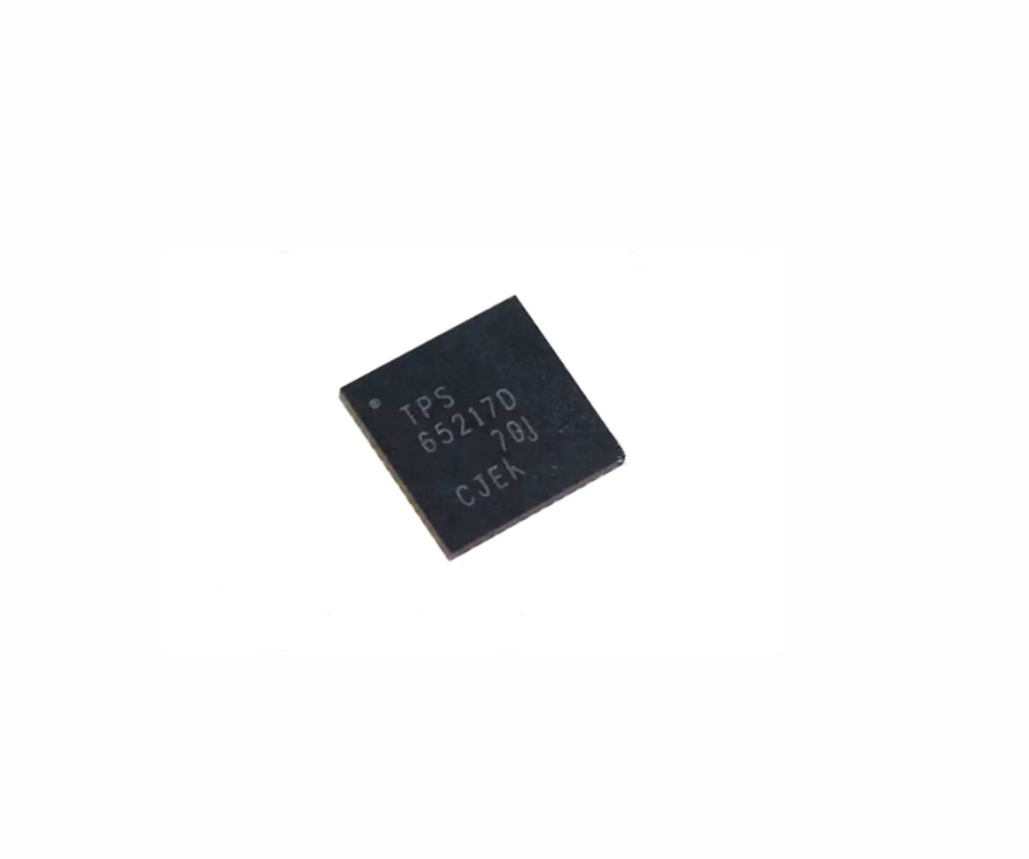

TPS65217DRSLR is a single-chip power management IC (PMIC) specifically designed to power the AM335x ARM® Cortex®-A8 processors in portable devices and 5V line-powered applications. The PMIC device contains a linear battery charger (supporting single-cell Li-Ion and Li-polymer batteries), dual input power paths, three buck converters, four low-dropout (LDO) regulators, and a high-efficiency boost Converter to power two strings of up to 10 LEDs each. The system can be powered by any combination of USB ports, 5V AC adapters, or Li-Ion batteries. The device is rated to operate from -40°C to +105°C, making it ideal for industrial applications. Three high-efficiency 2.25MHz buck converters provide the core voltage, memory and I/O voltages for the system. The TPS65217x is available in a 48-pin leadless package (6mm x 6mm VQFN) with 0.4mm pitch.

Product Features:

Charger and Power Path

2A output current on power path

Linear charger; maximum charge current 700mA

USB and AC inputs up to 20V

Thermal regulation, safety timer

temperature sensing input

Buck Converters (DCDC1, DCDC2, and DCDC3)

Three Buck Converters with Integrated Switching FETs

2.25MHz fixed frequency operation

Power Save Mode at Light Load Current

±2% output voltage accuracy in PWM mode

100% duty cycle for minimum voltage drop

15µA typical quiescent current per converter

Passive discharge to ground when disabled

LDO Regulators (LDO1 and LDO2)

Two adjustable LDOs

LDO2 can be configured to track DCDC3

Quiescent Current Typical 15µA

Load Switches (LDO3 and LDO4)

Two independent load switches configurable as LDOs

WLED driver

Features internally generated PWM for dimming control

38V Open LED Protection

Supports two LED strings (up to 10 LEDs per string, 25mA per LED)

Internal low-side sink current

Protect

Low Voltage Lockout and Battery Fail Comparator

Normally open button monitor

hardware reset pin

Password-Protected I2C Registers

interface

I2C interface (address 0x24)

Password-Protected I2C Registers

Applications:

Sitara™ AM335x Processor Power Supplies

Portable Navigation System

Tablet

5V Industrial Equipment
